Equipment

Acromil manufactures parts ranging from small (6 inches) to large (50 feet), simple to highly complex (monolithic). Our state-of-the-art equipment includes large, multi-spindle gantries, as well as both large and small vertical and horizontal machine work centers. Most of our machines are 5-axis with a handful of additional 3- and 4-axis machines. Our equipment ranges from high-speed (10,000 RPM or greater) to slower speed, higher torque.

For a detailed list of equipment in our state-of-the-art facility, please see the list below.


Equipment Charts
High Speed Machining Centers | 5 Axis - Gantries | 6 Axis CNCs | 5 Axis CNCs | 4 Axis CNCs | Horizontal Boring Mill | 3 Axis CNCs | Water Jet | CNC Tool and Cutter Grinding CMM Machines | Conventional FAB, BENCH, DEBURR

Color Code
Existing Machines
Machines on Order
Planned Expansion

High Speed Machining Centers
        Size (in)   Degrees Tilt
Mfg Controller # of
Axis
# of
Spindles
X
axis
Y
axis
Z
axis
HP A
axis
C
axis
Distance
BetWeen
Spindles
RPM Year
Handtmann  HBZ Trunnion 120 Siemens 840 5 1 50 43 35.4 95 +120/-30 360' N/A 14000 2014 Soft or Hard Metal Capability
Handtmann  HBZ CC 400 Siemens 840 5 1 160 40 21 60 +/-120 +/-200 N/A 30000 2013 Soft Metal Capability
Handtmann  PBZ HD 600 Siemens 840 5 1 255 23.4 12 60 +120/-95 +/- 275 N/A 30000 2012 Soft Metal Capability
Jobs Linx High Speed  Siemens 840 5 1 244 126 50 60 +100/-90 400 N/A 9000 / 24000 2004

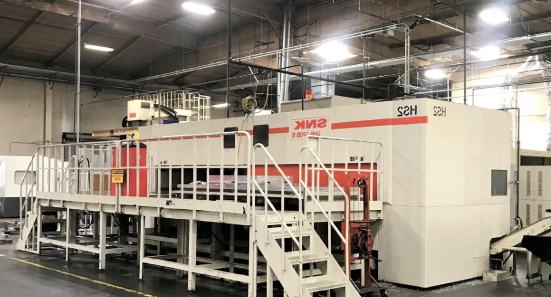

SNK High Speed Horizontal Tilt Table UHP-120B  Fanuc 15IM 5 1 124 52 27 88 + / - 90 360 N/A 24000 2005 Soft Metal Capability
SNK High Speed Horizontal Tilt Table   HPS-4B  Fanuc 16M 5 1 408 90 30 80 + 50 / - 90 +/- 270 N/A 15000 2000 Soft Metal Capability
OKK KCV1000 Fanuc 300I 5 1 137 40 28 100 36 36 N/A 12000 2008 Soft Metal Capability
back to top

5 Axis - Gantries
        Size (in)   Degrees Tilt
Mfg Controller # of
Axis
# of
Spindles
X
axis
Y
axis
Z
axis
HP A
axis
C
axis
Distance
BetWeen
Spindles
RPM Year
Cincinnati Hi Torque Profiler S/N  Siemens 950 5 3 920 120 30 60 25 25 30" 4000 1994 Hard Metal Capability
Cincinnati Hi Torque Profiler S/N  Siemens 950 5 3 920 120 30 60 25 25 40 4000 1998 Hard Metal Capability
Cincinnati Hi Torque Profiler S/N  Siemens 840D 5 3 920 84 28 30 25 25 40 4000 2016 Hard Metal Capability
SNK Gantry Profiler   Fanuc 15M 5 3 720 120 30 30 25 25 40 4000 1997 Soft or Hard Metal Capability
Cincinnati High Speed Profiler  Siemens 840D 5 3 1200 240 28 100 30 30 80 10000 2004 Soft Metal Capability
Cincinnati High Speed Profiler   Siemens 840D 5 3 1200 240 28 100 30 30 80 10000 2006 Soft Metal Capability

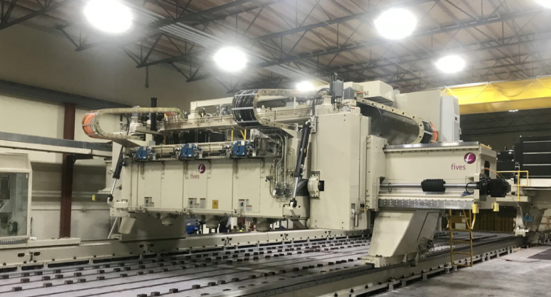

Fives Wide Range Profiler Siemens 840 5 3 720" 145" 28" 70 Continuous ±30⁰ ±30⁰ 60" 40-7,000 2016 Soft or Hard Metal Capability
Fives Wide Range Profiler Siemens 840 5 3 720" 145" 28" 70 Continuous ±30⁰ ±30⁰ 60" 40-7,000 2016 Soft or Hard Metal Capability
Fives Wide Range Profiler Siemens 840 5 3 720" 145" 28" 70 Continuous ±30⁰ ±30⁰ 60" 40-7,000 2017 Soft or Hard Metal Capability
Fives Wide Range Profiler Siemens 840 5 3 720" 145" 28" 70 Continuous ±30⁰ ±30⁰ 60" 40-7,000 2017 Soft or Hard Metal Capability
Fives Wide Range Profiler Siemens 840 5 3 720" 145" 28" 70 Continuous ±30⁰ ±30⁰ 60" 40-7,000 2017 Soft or Hard Metal Capability
Fives Wide Range Profiler Siemens 840 5 3 720" 145" 28" 70 Continuous ±30⁰ ±30⁰ 60" 40-7,000 2017 Soft or Hard Metal Capability
back to top

6 Axis CNCs
        Size (in)   Degrees Tilt
Mfg Controller # of
Axis
# of
Spindles
X
axis
Y
axis
Z
axis
HP A
axis
C
axis
Distance
BetWeen
Spindles
RPM Year
SNK RB-200F  Fanuc 330I 6 1 33 167 114 26 40 +/- 95 360 6000 2008 Soft or Hard Metal Capability
SNK RB-200F Fanuc 330I 6 1 33 167 114 26 40 +/- 95 360 6000 2012 Soft or Hard Metal Capability
back to top

5 Axis CNCs
        Size (in)   Degrees Tilt
Mfg Controller # of
Axis
# of
Spindles
X
axis
Y
axis
Z
axis
HP A
axis
C
axis
Distance
BetWeen
Spindles
RPM Year
Cincinnati Vertical  Mill Siemens 950 5 1 120 30 24 30 25 25 N/A 25-4000 1994 Soft or Hard Metal Capability
SNK Vertical Mill   Fanuc 16M 5 1 124 48 24 30 25 25 N/A 20-4000 1997 Soft or Hard Metal Capability

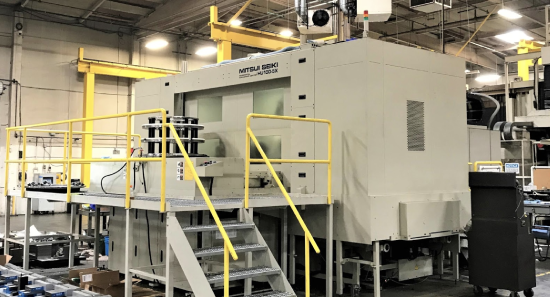

Mitsui Seiki Horizontal Machining Center Fanuc 30iM 5 1 59" 47.2" 47.2" 50 -90 360 Infinite N/A 60-6,000 2016 Soft or Hard Metal Capability
Mitsui Seiki Horizontal Machining Center Fanuc 30iM 5 1 59" 47.2" 47.2" 50 -90 360 Infinite N/A 60-6,000 2017 Soft or Hard Metal Capability
Mitsui Seiki Horizontal Machining Center Fanuc 30iM 5 1 59" 47.2" 47.2" 50 -90 360 Infinite N/A 60-6,000 2017 Soft or Hard Metal Capability
Mitsui Seiki Horizontal Machining Center Fanuc 30iM 5 1 59" 47.2" 47.2" 50 -90 360 Infinite N/A 60-6,000 2018 Soft or Hard Metal Capability
back to top

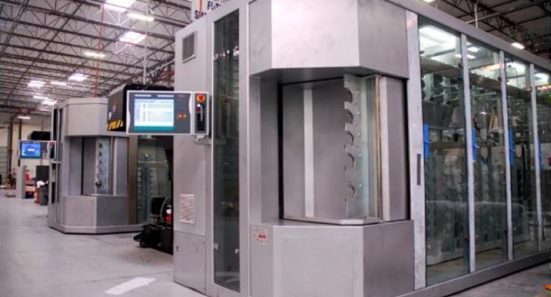

4 Axis CNCs
        Size (in)
Mfg Controller # of
Axis
# of
Spindles
X
axis
Y
axis
Z
axis
HP Distance
BetWeen
Spindles
RPM Year
OKK Horizontal MCHV1000  Fanuc 16M 4 1 64 50 30 30 N/A 6000 2000 Soft or Hard Metal Capability
Mori Seiki NH 501  NH-501 4 1 25 24 26 30 N/A 60 - 14,000 2004 Soft or Hard Metal Capability
back to top

Horizontal Boring Mill
        Size (in)   Degrees Tilt
Mfg Controller # of
Axis
# of
Spindles
X
axis
Y
axis
Z
axis
HP A
axis
C
axis
Distance
BetWeen
Spindles
RPM Year

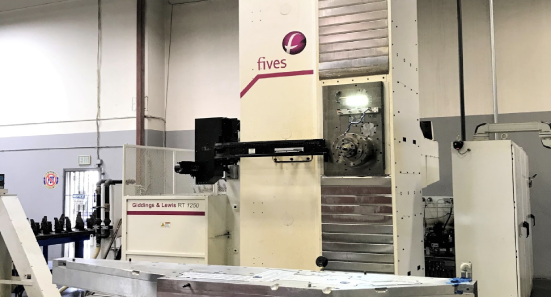

Fives Giddings&Lewis  HBM Siemens 840 4 +1 1 142" 83" 59/49 76   C Axis 360    3500 2016 Soft or Hard Metal Capability
Fives Giddings&Lewis  HBM Siemens 840 4 +1 1 142" 83" 59/49 76   C Axis 360    3500 2017 Soft or Hard Metal Capability
Fives Giddings&Lewis  HBM Siemens 840 4 +1 1 142" 83" 59/49 76   C Axis 360    3500 2018 Soft or Hard Metal Capability
back to top

3 Axis CNCs
        Size (in)
Mfg Controller # of
Axis
# of
Spindles
X
axis
Y
axis
Z
axis
HP Distance
BetWeen
Spindles
RPM Year
OKK High Speed KCV-800  Fanuc 16I 3 1 120.00 34.00 28.00 30 N/A 13000 1999 Soft Metal Capability
Haas Vertical Mill   3 1 40.00 20.00 15.00 15 N/A 9000 var '90s Soft or Hard Metal Capability
Haas Vertical Mill   3 1 40.00 20.00 15.00 15 N/A 9000 var '90s Soft or Hard Metal Capability
Fadal 3 Axis   3 1 80.00 30.00 18.00 15 N/A 9000 var ' 90s Soft or Hard Metal Capability

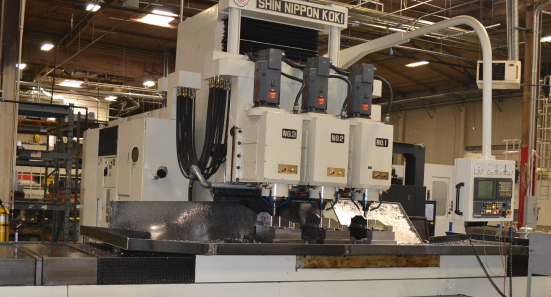

SNK Vertical Fanuc 18 3 3 120.00 50.00 24.00 20 24 3000   Hard Metal Capability
CincinnatiVertical Fanuc 18 3 3 95.00 26.00 13.00 30 18 1600   Hard Metal Capability
Pratt & Whitney Wilson Vertical Bridge Mill Fanuc 18 3 6 240.00 90.00 24.00 30 84 3600   Hard Metal Capability
back to top

Water Jet
    Machine Cutting travel
Description # of Axis X axis Y axis Z axis
Omax 80X1 3 240.00 80.00 8.00
back to top

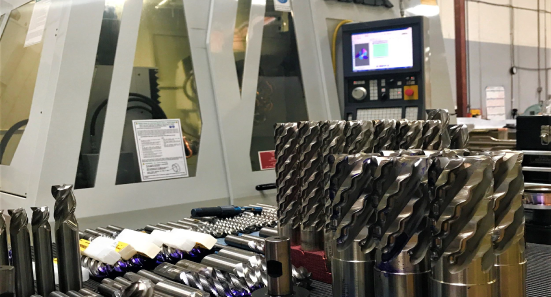

CNC Tool and Cutter Grinding
Description Model Year
Anka CNC Tool and Cutter Grinder TX7 2015
Anka CNC Tool and Cutter Grinder TX7 2015
back to top

CMM Machines
  Size (in)
Software X
axis
Z
axis
Calibration Year
PC-DMIS 98.00 71.00 Annual 2016
PC-DMIS 98.00 71.00 Annual 2008
PC-DMIS 65.00 40.00 Annual 1994
PC-DMIS       2016
PC-DMIS 120.00 100.00 Annual 1997
Manual 38.00 24.00 Annual 1995
VERISURF       2006
back to top

Conventional / FAB / BENCH / DEBURR
Machine / # Units Description Machine / # Units Description
4 Bridgeport vertical mills 2 Horizontal Band Saws
1 Cincinnati Knee horizontal Mill 1 Miller Mig Wire Feed Welder
1 Sullen Hone 2 Arbor Presses
1 Vertical Bank Saw 1 Complete cutter griding department
